Product Details

The Portable Aggregator TAP copies 100% full duplex traffic between two (2) network devices on 10/100/1000M Copper networks and then aggregates the copies to one or multiple out-of-band monitoring tools. The Aggregator TAP offers network engineers excellent flexibility by supporting aggregation, breakout, and regeneration/SPAN modes. The TAP is unmanaged and simple to configure the modes with DIP Switches on the back of the TAP. Most importantly, it is impossible for data to flow from the out-of-band monitoring tools to the network via the monitoring ports in the TAP because of its hardware-based Data Diode design. In the event that power to the TAP is lost, the relay circuitry will fail closed providing a connection between network devices. This built-in failsafe feature allows traffic to continuously flow if the TAP loses power. The TAP is invisible to hackers because there is no IP or MAC address.

Why Choose Garland Copper TAPS?

  • Provide 100% full duplex traffic visibility
  • Aggregate traffic down to one link
  • Unidirectional Data Diode design
  • Supports aggregation, tap 'breakout,' and regeneration/SPAN modes.
  • Supports Link Speed Synchronization.
  • Supports jumbo frames.

Who Should Deploy This Technology?

Customers with unmanaged switches who are looking to gain visibility into critical links within an OT environment need to utilize a Network TAP to gain access to the traffic before sending it on to an IDS or other monitoring tool. TAPs are commonly used throughout all OT verticals.

What Other Options Should Be Considered When Deploying This Technology?

If you do not have a Firewall between OT and IT, The Fortinet rugged series is a great option for perimeter security and deploying data diodes/taps can provide lower level segmentation on the network without the need to manage multiple firewalls. Taps may also be useful when aggregating data to send to security gateways such as IOT365 SIEM product.

FAQs

Q: Are there other versions of this technology available?
A: Yes, Garland offers a broad product line, including higher port count 1U appliances. OT Cyber Direct can provide a custom quote to meet your specific needs. Contact us at Sales@OTCyberDirect.com or call 1-508-289-1195 for more details.

Q: Is this TAP easy to install and configure?
A: Yes, this is an inline device that can be setup and configured in minutes.

Q: What support is available for this equipment?
A: OT Cyber Direct provides first-level installation and troubleshooting support. Garland offers second- and third-level support for more complex networking issues.

Q: Do you ship outside of the United States?
A: No, but we can refer you to the Garland Team for assistance in purchasing outside the U.S.

Summary

The Portable Aggregator TAP copies 100% full duplex traffic between two (2) network devices on 10/100/1000M Copper networks and then aggregates the copies to one or multiple out-of-band monitoring tools. The Aggregator TAP offers network engineers excellent flexibility by supporting aggregation, breakout, and regeneration/SPAN modes. The TAP is unmanaged and simple to configure the modes with DIP Switches on the back of the TAP. Most importantly, it is impossible for data to flow from the out-of-band monitoring tools to the network via the monitoring ports in the TAP because of its hardware-based Data Diode design. In the event that power to the TAP is lost, the relay circuitry will fail closed providing a connection between network devices. This built-in failsafe feature allows traffic to continuously flow if the TAP loses power. The TAP is invisible to hackers because there is no IP or MAC address.

Garland Technology

P1GCCAS

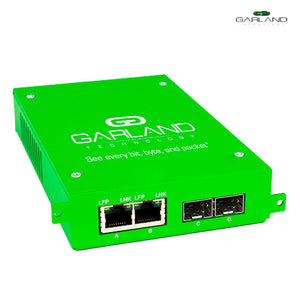

Garland Copper Network TAP

$1,440.00
$1,440.00

Why we endorse this product:
Why we endorse this product:
Capture 100% of the network packets
Aggregates data to 1 or 2 monitoring outputs

Popup Title

Popup description
Quick and easy to deploy

View Data Sheet

Product Specs

  • Portable, Plug & Play.
  • Easy configuration; DIP switches on back.
  • 1U rack mount holds up to four portable TAPs.
  • 100% secure and invisible; no IP address, no Mac address; cannot be hacked.
  • Made, tested and supported in USA.
